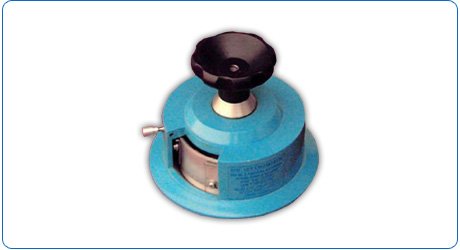

The sample cutter is designed to cut out rapidly and accurately a circular specimen of a particular area.Virtually any type of material can be cut,such as woven,non-woven and knitted fabrics,carpet,film or paper,Each cutter is supplied complete with two cutting boards and 20 spare blades. |
|
| |
Place the sample on the cutting board,making sure that is flat and not stretched.
Place the cutter on the sample,release the safety catch and turn through 90.Whilst holding the cutter with one hand,apply pressure to the handling and rotate through at least 90.
Remove the cutter and relock the safety catch.for replacing or turning the blades loosen the blade retaining screws to allow the blade retaining plate to be removed.Place teh blades on the two pin-screws and screw-on the blade retaining plate. |
|
